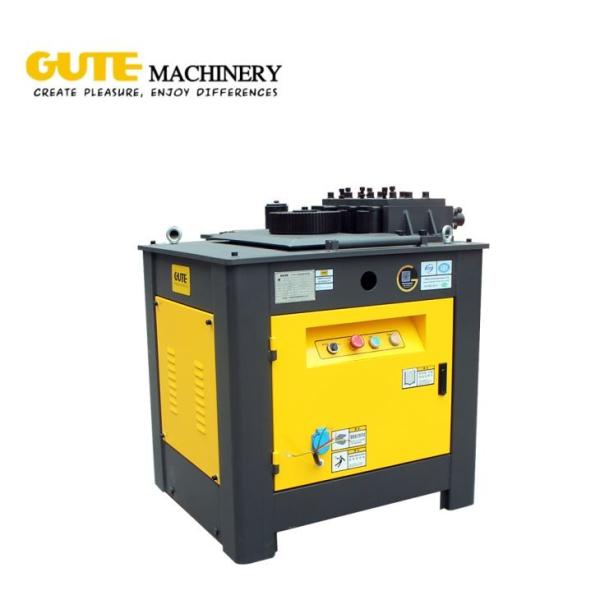

32mm Steel Bar Bender 9R/Min Gute Bar Bending Machine

Ask Lasest Price
Brand Name :	GUTE
Model Number :	GWH32E
Certification :	CE,ISO 9001:2000
Price :	1250-1300USD/SET
Payment Terms :	L/C, T/T, D/P, D/A
Supply Ability :	500set/month
Delivery Time :	20 work days

Add to Cart

Product Details
Company Profile

32mm Steel Bar Bender 9R/Min Gute Bar Bending Machine

32mm Steel Bar Spiral Bender

Product Details

• GWH-32E adopts the fully enclosed GEAR BOX separated from the working disk for no distortions even under the condition of heavy loads and no oil leaking while lifting the machine.

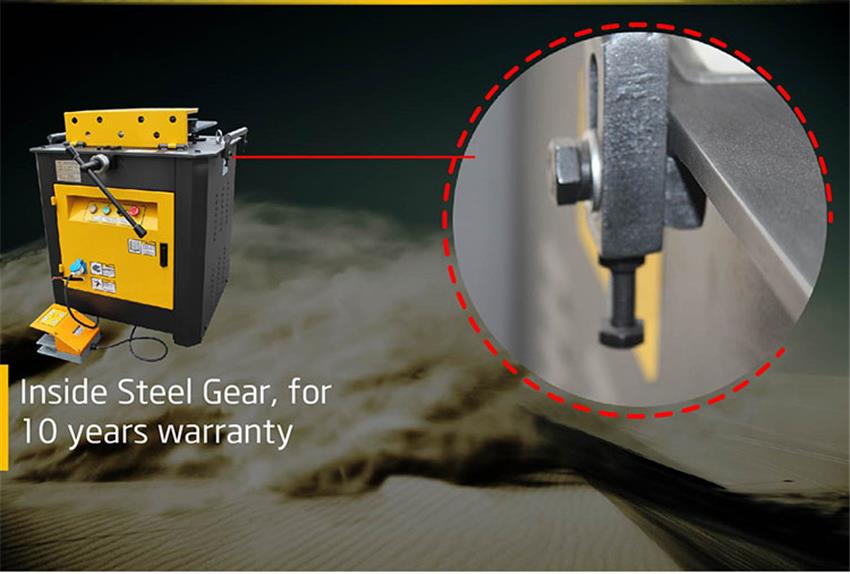

• GEARS, GEAR SHAFT, GEAR BOX and BENDING WHEELS made of high-quality alloyed steel with proper heat treatment (quenching/ tempering) and 2 mm thick external case to ensure high performances also under heavy loads and long working life.

• FLY WHEEL and side bolts to ensure accuracy of the bending diameter also after stopping and restarting.

• Adjustable bending angle from 10° to 360°.

MOTOR TYPE

GWH-32E

• MOTOR TYPE: Y100L2-4 DUST PROOF

• MOTOR POWER: 3,0 kw-4P

* Motors has 1 year warranty.

* VOLTAGE OPTIONS: any voltage from 220 to 440 / 220-380 (switchable)

* FREQUENCY OPTIONS: 50Hz / 60Hz

STEEL BAR SPIRAL BENDER GWH-32E

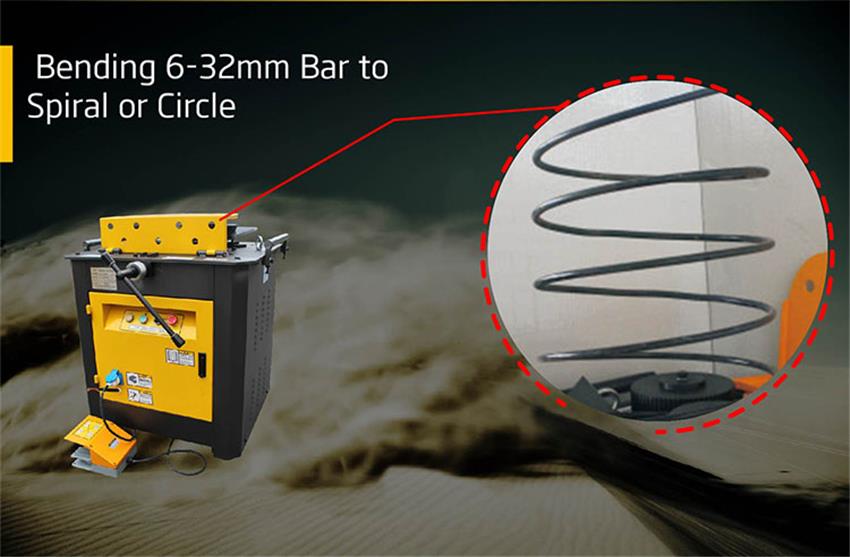

Bending Capacity	6-32 mm (ob ≤450N/mm2)	6-28 mm (ob ≤650N/mm2)
Operation	Automatic
Type of Motor	Y100L2-4
Motor Power	3 KW-4P
Motor Rotation Speed	1430 R/min
BENDING WHEELS SPEED	15 R/min
Speed of Working Disk	9 R/min
Noise Value (1m away)	≤75dB(A)
Weight	340 Kg.
Dimension	900800950 mm
Certification	ISO 9001:2008
