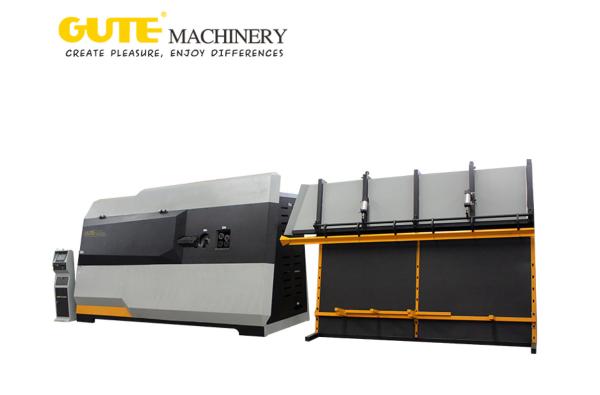

Siemens Stirrup Hook Bending Machine PLC Control

Ask Lasest Price
Brand Name :	GUTE
Model Number :	SGW16D
Certification :	CE,ISO 9001:2000
Price :	65000-70000USD/SET
Payment Terms :	L/C, T/T, D/P, D/A
Supply Ability :	200set/month
Delivery Time :	20 work days

Add to Cart

Product Details
Company Profile

Siemens Stirrup Hook Bending Machine PLC Control

Siemens PLC Control 16mm Cnc Automatic Steel Bar Stirrup Hook Bending Machine

Overview

 1. With the capacity of making stirrups from 6-16mm reinforced coil
wires as well as 12-16mm straight wires 2. Siemens PLC control and customized system, stable flow 3. Multi-feeding bacj system ensures various processing shapes
available.

Scope of application

Mainly used in the construction of housing construction, highways, roads and bridges, subways and other projects.

Device parameters

Single wire bending diameter	6–16mm
Rebar double wire bending diameter	6–12mm
Processing material	Steel Coil
Maximum towing speed	100 m/min
Maximum bending speed	1050°/sec
Rib straightness error	0.02/1m
Total power	65KW
Power consumption	10KW/H
Stirrup length accuracy	±1mm
Rib length accuracy	±5mm
Maximum bending angle	±180°
Longest stirrup side	1000mm
Shortest stirrup side	90mm
The longest length of the rib	9m
Traction control method	Servo
Bend control method	Servo
Loopback control method	Servo
Total Weight	5.5T

Equipment advantages

Automatic to pick up the Straight bar
Max. to straight 9m or customized

Straightening wheel for forging alloy tool steel manufacturing, wear resistance, impact resistance..
Preset wheel plate: the overall use of 30mm thick steel plate, high strength, strong impact load, very durable.

The adoption of multi-split type blade which ensures a double lifetime co-mpared with normal one piece blade

The touch screen console can store hundreds of graphics and is easy to operate.
