12mm Steel Wire CNC Stirrup Bending Machine Single Direction

Ask Lasest Price
Brand Name :	GUTE
Model Number :	SGW12A-1
Certification :	CE,ISO 9001:2000
Price :	15000-19000USD/SET
Payment Terms :	L/C, T/T, D/P, D/A
Supply Ability :	200set/month
Delivery Time :	20 work days

Add to Cart

Product Details
Company Profile

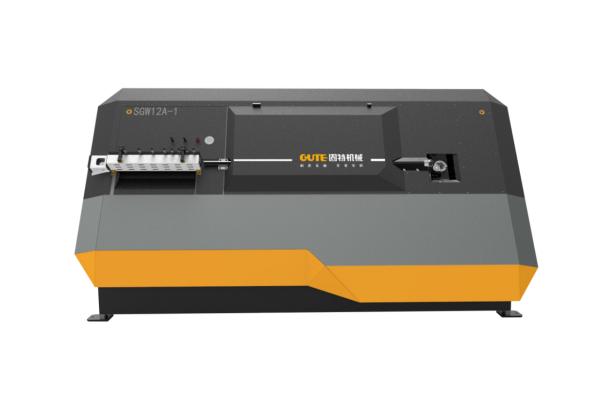

12mm Steel Wire CNC Stirrup Bending Machine Single Direction

Higher Cost Performance 12mm Cnc Stirrup Bending Machine Steel Wire Bender

Overview

 1. IKO bearings imported from Japan are used in key parts to ensure
service life. 2. 1600pcs/h stirrups and each batch can be yield up to 8tons. 3. The the power is provided by servo motor, with high efficiency and
accuracy Support multi - language interactive interface, simple
operation

Finished products

12mm Steel Wire CNC Stirrup Bending Machine Single Direction

Device parameters

Single wire bending diameter	5–12mm
Rebar double wire bending diameter	5–8mm
Maximum towing speed	100 m/min
Maximum bending speed	1050°/sec
Rib straightness error	0.02/1m
Total power	31KW
Power consumption	5KW/H
Stirrup length accuracy	±1mm
Rib length accuracy	±5mm
Maximum bending angle	±180°
Longest stirrup side	900mm
Shortest stirrup side	140mm
Total Weight	1.5T

Equipment advantages

Straightening wheel for forging alloy tool steel manufacturing, wear resistance, impact resistance.
Preset wheel plate: the overall use of 30mm thick steel plate, high strength, strong impact load, very durable.

Equipped with 16KW high-power servo motor to ensure the smooth operation of tractio.

The adoption of multi-split type blade which ensures a double lifetime co-mpared with normal one piece blade

The touch screen console can store hundreds of graphics and is easy to operate.

Our factory

12mm Steel Wire CNC Stirrup Bending Machine Single Direction

Our service

12mm Steel Wire CNC Stirrup Bending Machine Single Direction

Certification

12mm Steel Wire CNC Stirrup Bending Machine Single Direction
