1430R/MIN Automatic Steel Rod Bending Machine GW42D-4

Ask Lasest Price
Brand Name :	GUTE
Model Number :	GW42D-4
Certification :	CE,ISO 9001:2000
Price :	1300USD/SET
Payment Terms :	L/C, T/T, D/P, D/A
Supply Ability :	200set/month
Delivery Time :	20 work days

Add to Cart

Product Details
Company Profile

1430R/MIN Automatic Steel Rod Bending Machine GW42D-4

Steel rod bender machine GW42D-4

PRODUCT DESCRIPTION

•GW42D-4 adopts the fully enclosed gear box separated from the working disk for no distortions even under the condition of heavy loads and no oil leaking while lifting the machine.

•Gears,gear shafts,working disk,stop gauge,saddles,pile heads and pile head bushes made of high-quality alloyed steel with proper heat treatment(quenching/tempering/high frequency)and 3mm thick external case to ensure high performances also under heavy loads and long working life.

•Dust proof brake motor and two limit switch to ensure the accuracy of the bending angle also after stopping and restarting.

•Insert pin type disk and movable saddles for a precise adjusting of the bending angle.

•CE certification

undefined

TECHNICAL DATA

Bending Capacity	6-42 mm (ob ≤450N/mm2)	6-36 mm (ob ≤650N/mm2)
Operation	Automatic
Type of Motor	YEJ 100L2-4 (Brake motor)
Motor Power	3 KW-4P
Motor Roatation Speed	1420 R/min
Speed of Working Disc	12 R/min
Noise Value(1M Away)	≤80dB(A)
Weight	374KG
Size(LWH)	810760860 mm
Certification	2006/42/EC - 2006/95/EC

DETAIL LOOK

undefined

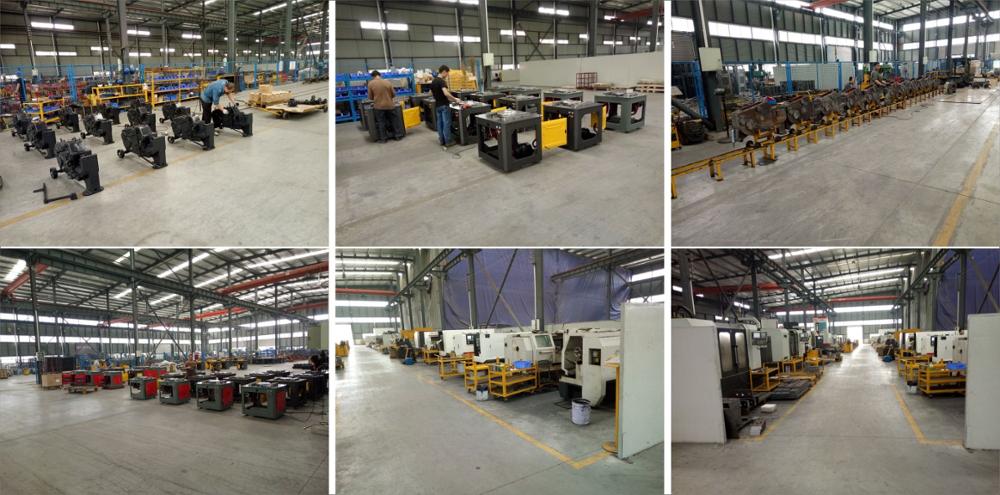

PRODUCTION LINE

undefined

TRANSPORTATION

undefined

CONSTRUCTION SITE

undefined

CERTIFICATION

undefined

WORLDWIDE PARTNER

undefined

OUR SHOP

undefined
