40mm Rebar Hoop CNC Stirrup Bending Machine Double Head

Chengdu Gute Machinery Works Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap 40mm Rebar Hoop CNC Stirrup Bending Machine Double Head from wholesalers

    Buy cheap 40mm Rebar Hoop CNC Stirrup Bending Machine Double Head from wholesalers
    • Buy cheap 40mm Rebar Hoop CNC Stirrup Bending Machine Double Head from wholesalers

    40mm Rebar Hoop CNC Stirrup Bending Machine Double Head

    Ask Lasest Price
    Brand Name : GUTE
    Model Number : LSW-40
    Certification : CE,ISO 9001:2000
    Price : 35000-42000USD/SET
    Payment Terms : L/C, T/T, D/P, D/A
    Supply Ability : 200set/month
    Delivery Time : 20 work days
    • Product Details
    • Company Profile

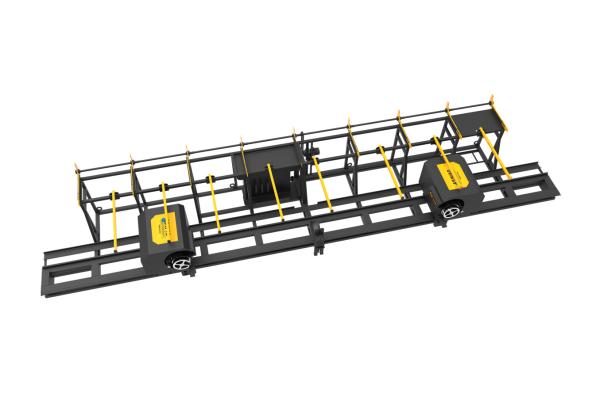

    40mm Rebar Hoop CNC Stirrup Bending Machine Double Head


    40mm Double Head Vertical Cnc Rebar Hoop Bending Machine Rebar Stirrup Bender
    01

    Overview

    LSW40 vertical CNC steel bar bending center is a device designed for large steel bars. In addition to the characteristics of the bending center, it is equipped with different pile heads and pile head sleeves, which is easy to disassemble and assemble. It can complete the bending of the large R arc of the steel bar at one time. The diameter of the arc can be adjusted arbitrarily within the allowable range; the equipment has complete functions, which greatly improves the efficiency and use range of steel bar processing.

    02

    Device parameters

    rated power20KW
    Air source working pressure0.8MPa
    Maximum bending angle-120°至180°
    Maximum bending10.8m
    Minimum curved edge spacing520mm
    Moving speed of machine head0.5-1m/sec
    Fastest bending speed70°/sec
    total weight4.9t
    Average power consumption5KW/H
    L*W*H12m×2m×1.7m
    Diameter101214162025283640
    Quantity865532211±≤90°
    Movement ControlServo
    Bending ControlServo
    Power sourcepneumatic
    03

    Equipment advantages

    Finished product

    40mm Rebar Hoop CNC Stirrup Bending Machine Double Head


    Case

    40mm Rebar Hoop CNC Stirrup Bending Machine Double Head

    Our factory

    40mm Rebar Hoop CNC Stirrup Bending Machine Double Head

    40mm Rebar Hoop CNC Stirrup Bending Machine Double Head

    Our service

    40mm Rebar Hoop CNC Stirrup Bending Machine Double Head


    Certification

    40mm Rebar Hoop CNC Stirrup Bending Machine Double Head
