    380V 420V Automatic Rebar Stirrup Bending Machine Double Head 18KW

    Ask Lasest Price
    Brand Name : GUTE
    Model Number : LSW-32B
    Certification : CE,ISO 9001:2000
    Price : 21000-28000USD/SET
    Payment Terms : L/C, T/T, D/P, D/A
    Supply Ability : 200set/month
    Delivery Time : 20 work days
    • Product Details
    • Company Profile

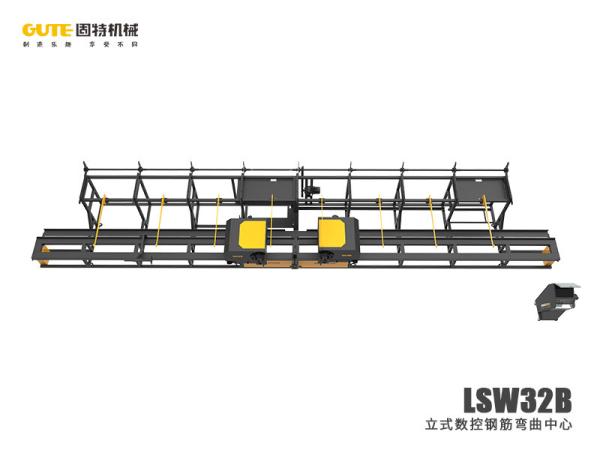

    380V 420V Automatic Rebar Stirrup Bending Machine Double Head 18KW

    32m Rebar Double Head Cnc Automatic Rebar Bending Machine Stirrup Bender

    32m Rebar Double Head Cnc Autmatic Rebar Bending Machine Stirrup Bender

    01

    Overview

    • Φ32 threaded steel bars are bent forward and backward to meet the needs of more customers.
    • Tailor-made forming wheels can bend complex rebar patterns.
    • The longest can be bent to 10 meters, to meet a variety of graphics requirements, strong practicability.
    • Computer programming can store hundreds of graphics.
    • The bending and walking are all controlled by servo motors, the bending angle is accurate, and the molding size is more accurate.
    • Touch screen console, easy operation, automatic bending and rapid prototyping.
    • All steel plate welded box base, strong and durable; equipped with standard reducer to increase the service life.
    • Rack drive is adopted to ensure accurate product size.
    • Pneumatic adopts the well-known brand Taiwan AirTAC to ensure the quality, and is equipped with a 5.5KW air compressor to ensure sufficient air supply.
    • Innovative horseshoe rib forming wheel design, the shortest side of horseshoe can reach 390mm.
    02

    Device parameters

    rated power18KW
    Air source working pressure0.8MPa
    Maximum bending angle-120°至180°
    Maximum bending length10m
    Minimum curved edge spacing390mm
    Moving speed of machine head0.5-1m/sec
    Fastest bending speed72°/sec
    total weight4t
    Average power consumption5KW/H
    L*W*H12m×2m×1.5m
    Diameter101214162022252832
    Quantity765432111±≤90°
    Movement ControlServo
    Bending ControlServo
    Power sourcepneumatic
    03

    Equipment advantages

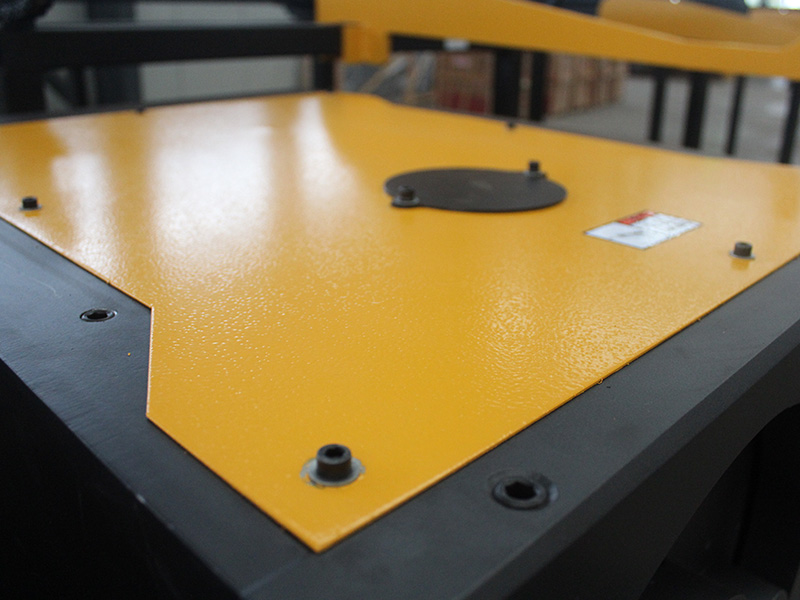

    The all-steel welded box body is strong, durable, and will not deform for life.

    Using rack drive to ensure accurate product size.

    The bending and walking are all controlled by servo motors, the bending angle is accurate, and the forming size is accurate.

    Finished product

    380V 420V Automatic Rebar Stirrup Bending Machine Double Head 18KW


    Case

    380V 420V Automatic Rebar Stirrup Bending Machine Double Head 18KW

    Our factory

    380V 420V Automatic Rebar Stirrup Bending Machine Double Head 18KW

    380V 420V Automatic Rebar Stirrup Bending Machine Double Head 18KW

    Our service

    380V 420V Automatic Rebar Stirrup Bending Machine Double Head 18KW


    Certification

    380V 420V Automatic Rebar Stirrup Bending Machine Double Head 18KW
