300mm CNC Pile Cage Welding Machine Steel Cage Welder

Ask Lasest Price
Brand Name :	GUTE
Model Number :	SGH15-12
Certification :	CE,ISO 9001:2000
Price :	32000-39000USD/SET
Payment Terms :	L/C, T/T, D/P, D/A
Supply Ability :	200set/month
Delivery Time :	20 work days

Add to Cart

Product Details
Company Profile

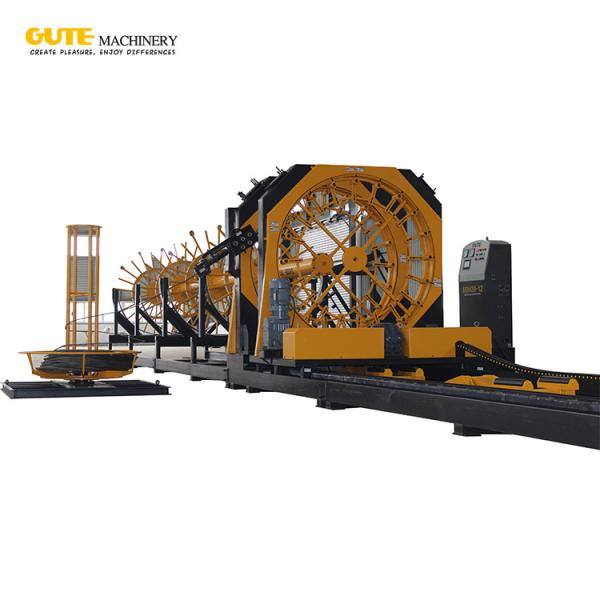

300mm CNC Pile Cage Welding Machine Steel Cage Welder

Construction concrete Pile cage making machine/Rebar cage welding machine

Features:
1. control system: PLC, touch screen, inverter.
2. automatic wire feeding mechanism, the spacing can be adjusted online, the error is small, high molding quality.
3. frequency control drag cage institutions, high running accuracy.
4. with more automatic hydraulic feed rollers, to prevent steel cage deformation due to its own weight.
5. equipped with automatic feeding device, easy to operate and improve efficiency.
6. template using the template ring plus catheter combination, can be quickly replaced and transform the quantity of main steel cage wire .
7. straightening systems are made of high strength alloy material, high strength, anti-wear and improve the life of wearing parts

CNC PILE CAGE WELDING MACHINE(Automatic Welding)
CAGE DIAMETER	300mm-2000mm
MAX. CAGE LENGTH	12m(or customized)
CAGE WEIGHT	5500KG
COIL BAR DIAMETER	5-14mm
MAIN FRAME BAR DIAMETER	12-40 mm
HYDRAULIC PRESSURE	10 Mpa
RATED POWER	21KW
L×W×H	28000×8000×33000mm
CERTIFICATION	ISO 9001:2008

Parameters	SGH15-12	SGH20-12	SGH22-12
Cage pile diameter	Φ300-φ1500 full size adjustable	Φ650-φ2000 full size adjustable	Φ650-φ2200 full size adjustable
Cage length	3-12m	3-12m	3-12m
Cage weight	5500kg	5500kg	6000kg
Coil bar diameter	Φ5-Φ14mm	Φ5-Φ14mm	Φ5-Φ14mm
Main frame bar diameter	Φ12-Φ40mm	Φ12-Φ40mm	Φ12-Φ40mm
Total weight	15t	14t	15t
Rated power	21KW	21KW	21KW
Spacing of winding bars	0-300mm	0-300mm	0-300mm
LWH	28.53.72.5(M)	28.54.73(M)	28.553.6(M)
Maximum walking speed	2.8m/min	2.8m/min	2.8m/min
Maximum rotation speed	4r/min	3.1r/min	2.8r/min
Feeding Device	Chain Drive	Chain Drive	Chain Drive
Pipe Material	Process Heat Treatment Steel	Process Heat Treatment Steel	Process Heat Treatment Steel
Welding equipment	carbon dioxide shielded welding	carbon dioxide shielded welding	carbon dioxide shielded welding
Welding method	Manual/Auto	Manual/Auto	Manual/Auto
