3-12m CNC Automatic Pile Cage Welding Machine Chain Drive

Ask Lasest Price
Brand Name :	GUTE
Model Number :	SGH15-22
Certification :	CE,ISO 9001:2000
Price :	32000-39000USD/SET
Payment Terms :	L/C, T/T, D/P, D/A
Supply Ability :	200set/month
Delivery Time :	20 work days

Add to Cart

Product Details
Company Profile

3-12m CNC Automatic Pile Cage Welding Machine Chain Drive

CNC Automatic 2200mm Cage Pile Making Machine Pile Equipment

2200mm Cnc Cage Making Machine Rolling Cage Robot Welding Machine

Overview

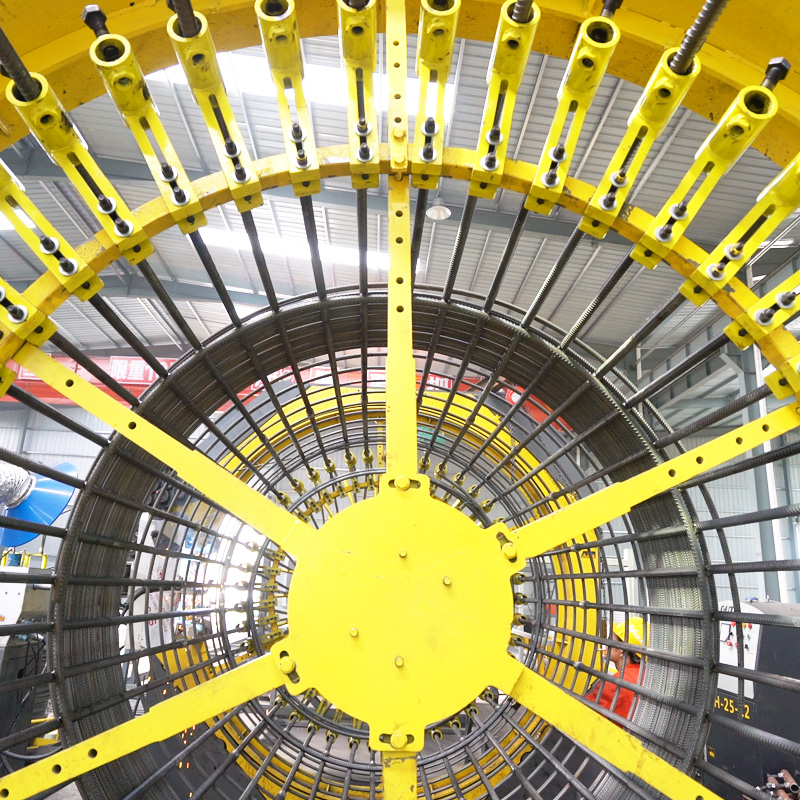

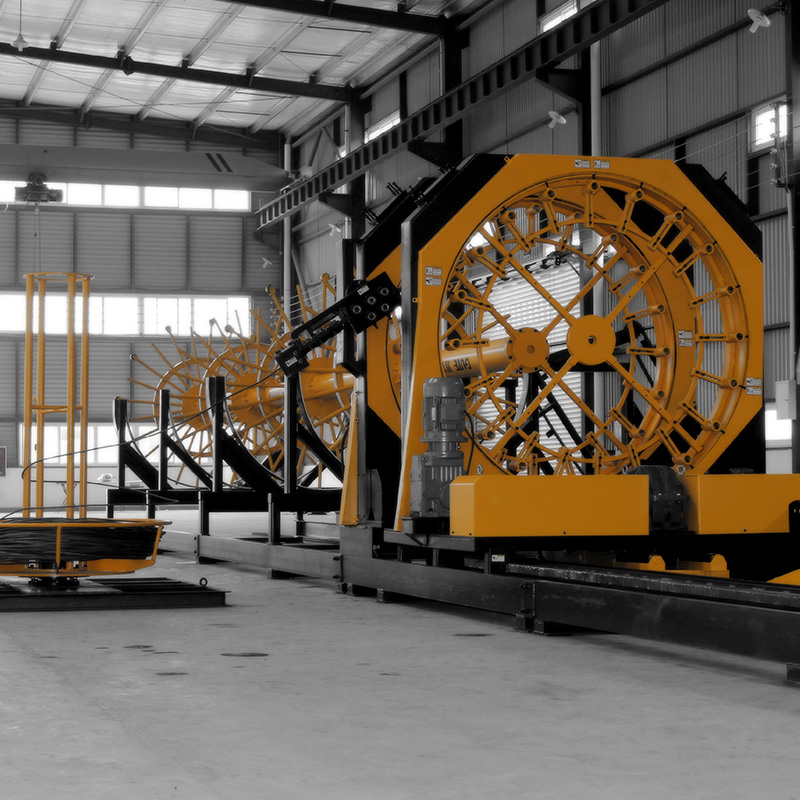

Gute CNC steel cage roll welding machine is a professional equipment for making steel cages. It has the characteristics of uniform spacing, high dimensional accuracy, mechanical rotation, tight winding of the winding rib and the main rib, high concentricity, tight winding, and small deformation. At present, it is mainly used in the construction of cast-in-place piles in large bridges, high-speed railways, expressways and other fields.

Scope of application

Mainly used in the construction of high-speed, road and bridge, housing construction, railway and other projects.

Device parameters

Parameters	SGH22-12
Reinforced cage pile diameter	Φ300-φ2200(Full size adjustable)
Reinforcement cage length	3-12m
Maximum weight of steel cage	5500kg
Reinforcement diameter	Φ5-Φ14mm
Main rebar diameter	Φ12-Φ40mm
total weight	15t
rated power	21KW
Interlocking rebar spacing	0-300mm
Size length * width * height	28.5×5×3.2m
Maximum walking speed	2.8m/min
Maximum rotation speed	2.8r/min
Control System	Touch screen + PLC + inverter + servo motor
Feeding device	Chain drive
Welding equipment	Carbon dioxide shielded welding
Welding method	Manual
Main rebar fixed tube	60sets

Equipment advantages

Automatic wire feeding mechanism, can adjust the distance online, with small error and high molding quality;

Equipped with automatic feeding device, easy to operate and improve efficiency;

Equipped with multiple batching automatic hydraulic rollers to prevent the steel cage from being deformed automatically;

The diameter error of the steel cage is accurately controlled.
